European Grade HSS Gravers

Name: European Grade HSS Gravers
Brand: Indco Tools
SKU: hss-gravers
Price: 499.00 INR
Availability: InStock
Rating: 4.8 (27 reviews)

European-grade high-speed-steel hand gravers in four profiles, flat, half round, onglette, and knife, at 105 mm standard length.

European-grade HSS
4 profiles
105 mm · 12 pc/box

Order or request a quote All products

Fig. 05

The four bench graver profiles side by side: flat, half round, onglette, and knife, in high-speed steel.

Gravers are the hand-pushed cutting tools used to engrave, bright-cut, and set metal. Indco Tools supplies European-grade high-speed-steel gravers in the four standard bench profiles.

Each graver is 105 mm long and individually pouch-packed at 12 pieces per box. Every profile is made in a full range of Europe and USA sizes, each with a defined cutting thickness in millimetres.

Product photos

Product gallery

Reference photographs showing finish and construction.

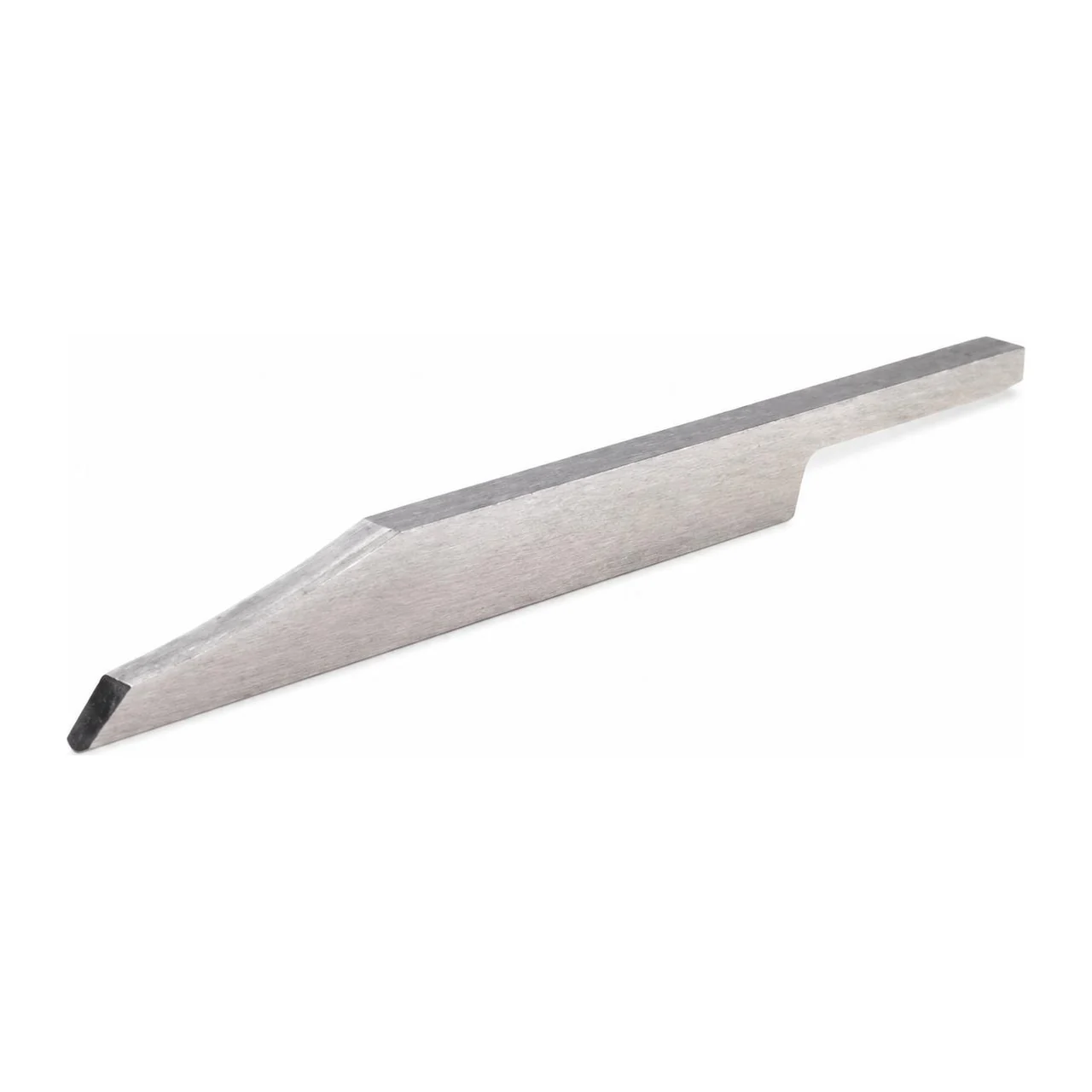

Flat high-speed-steel graver with a bright, uncoated finish, showing the flat cutting face. — Flat graver — bright finish

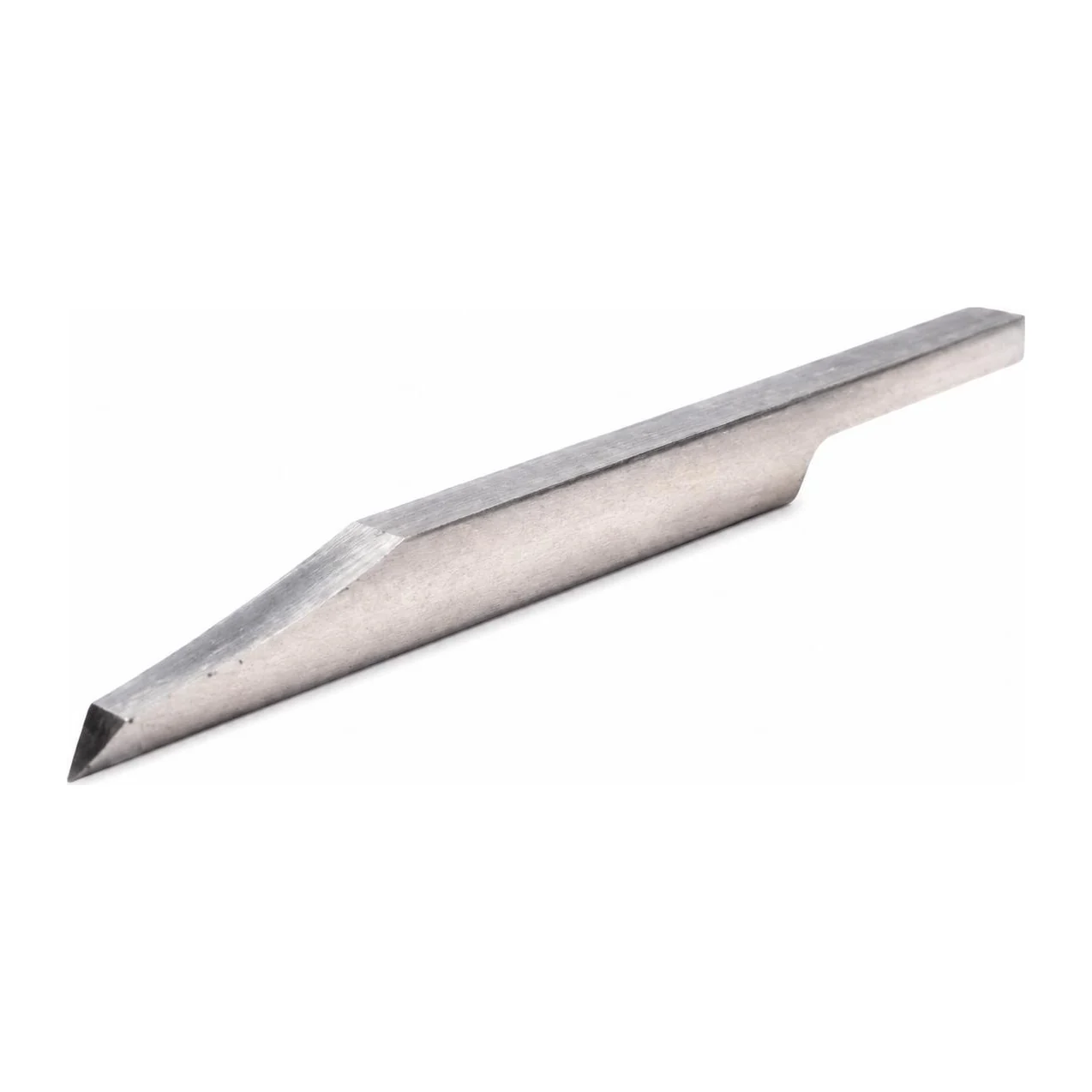

Onglette high-speed-steel graver with a bright, uncoated finish, showing the lozenge V point. — Onglette graver — bright finish

Size tables

Profiles & sizes

Europe and USA size numbers with cutting thickness for each profile.

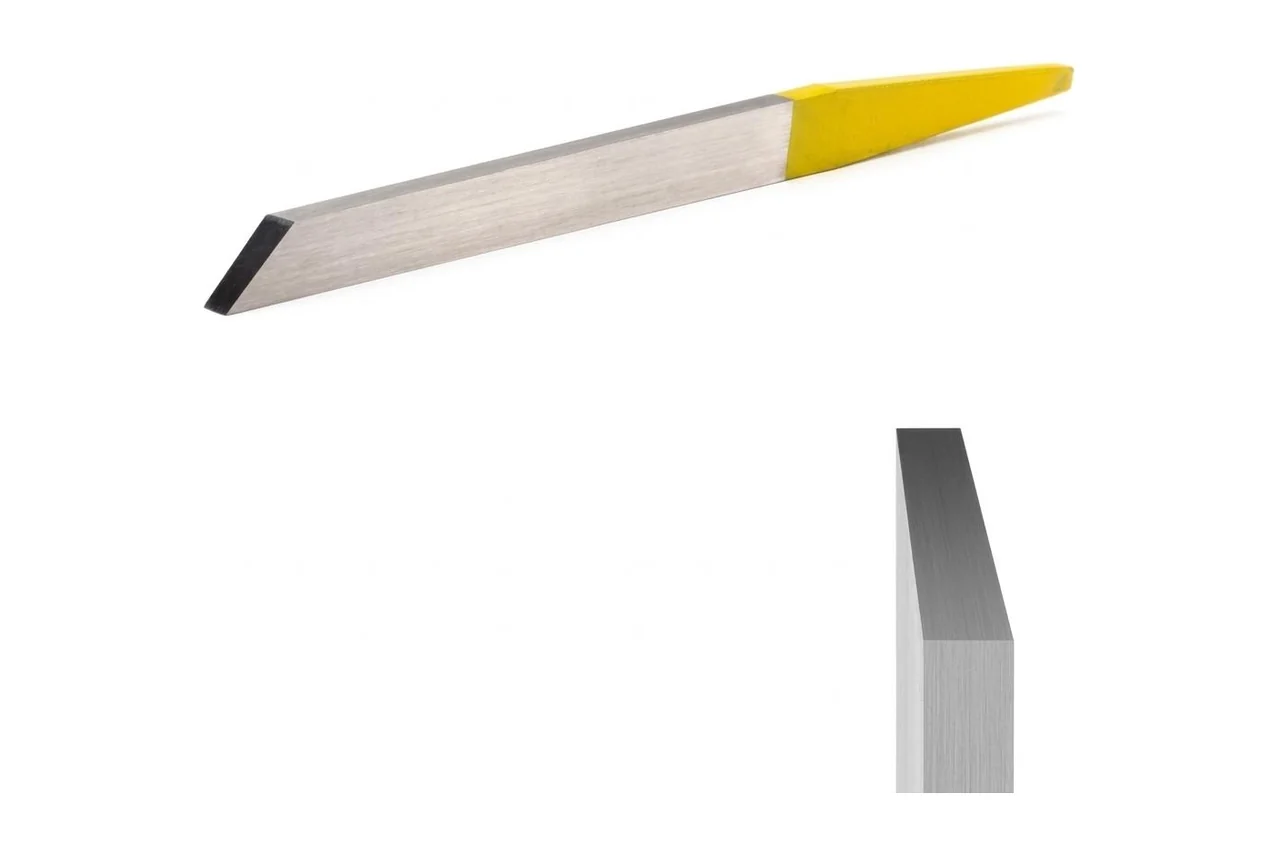

Flat

Flat rectangular face for cleaning, lettering, and bright cuts.

Europe #	USA #	Thickness (mm)
2	36	0.2
4	37	0.4
6	38	0.6
8	39	0.8
10	40	1.0
12	41	1.2
14	42	1.4
16	43	1.6
18	44	1.8
20	45	2.0
22	46	2.2
24	47	2.4
26	48	2.6
28	49	2.8

Half Round

Rounded underside for scoop cuts and bead-raising.

Europe #	USA #	Thickness (mm)
2	50	0.2
4	51	0.4
6	52	0.6
8	53	0.8
10	54	1.0
12	55	1.2
14	56	1.4
16	57	1.6
18	58	1.8
20	59	2.0
22	60	2.2
24	61	2.4
26	62	2.6
28	63	2.8

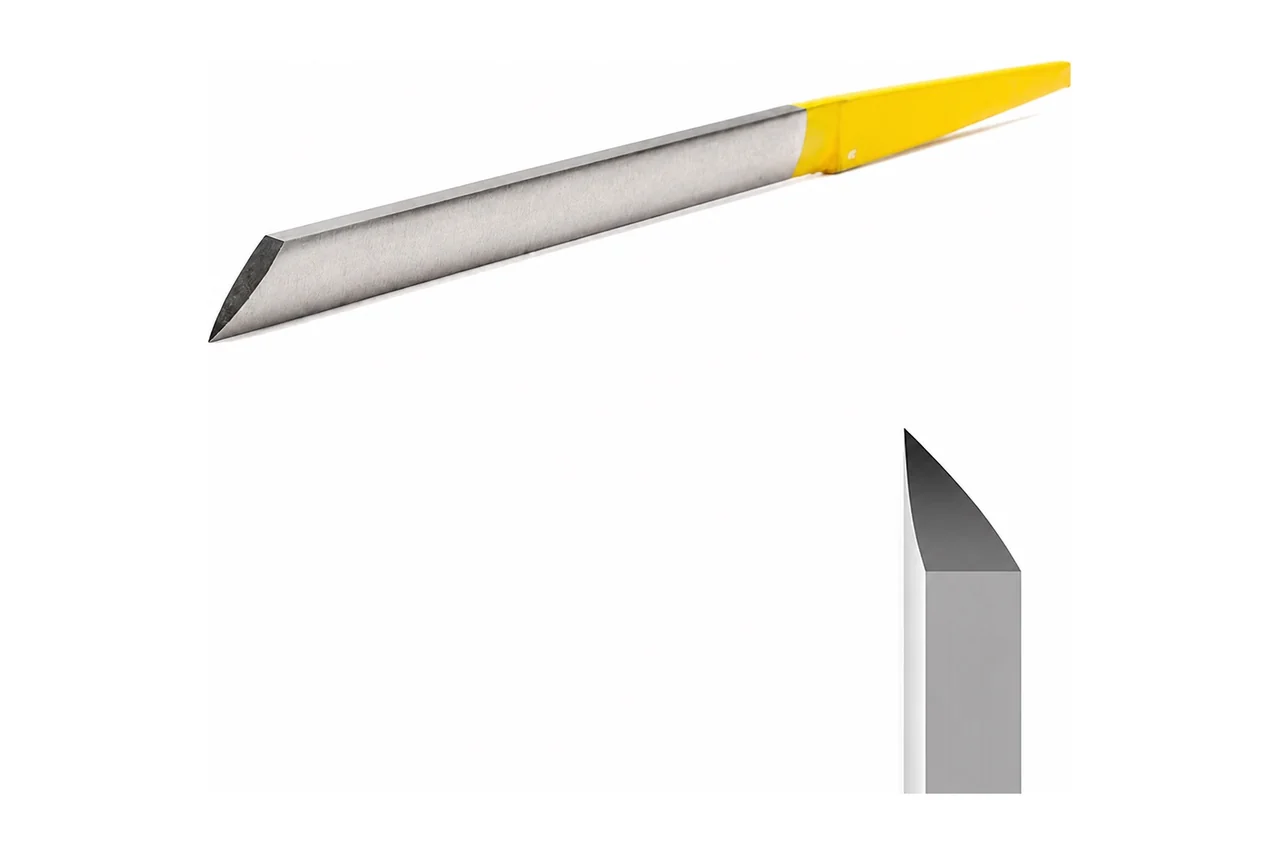

Onglette

Lozenge or V point for line work, wriggle cuts, and bright-cutting.

Europe #	USA #	Thickness (mm)
5/0	5/0	1.16
4/0	4/0	1.24
3/0	3/0	1.35
2/0	2/0	1.45
0	0	1.58
1	1	1.78
2	2	1.94
3	3	2.16
4	4	2.54
5	5	2.74
6	6	2.94
7	7	3.14
8	8	3.36

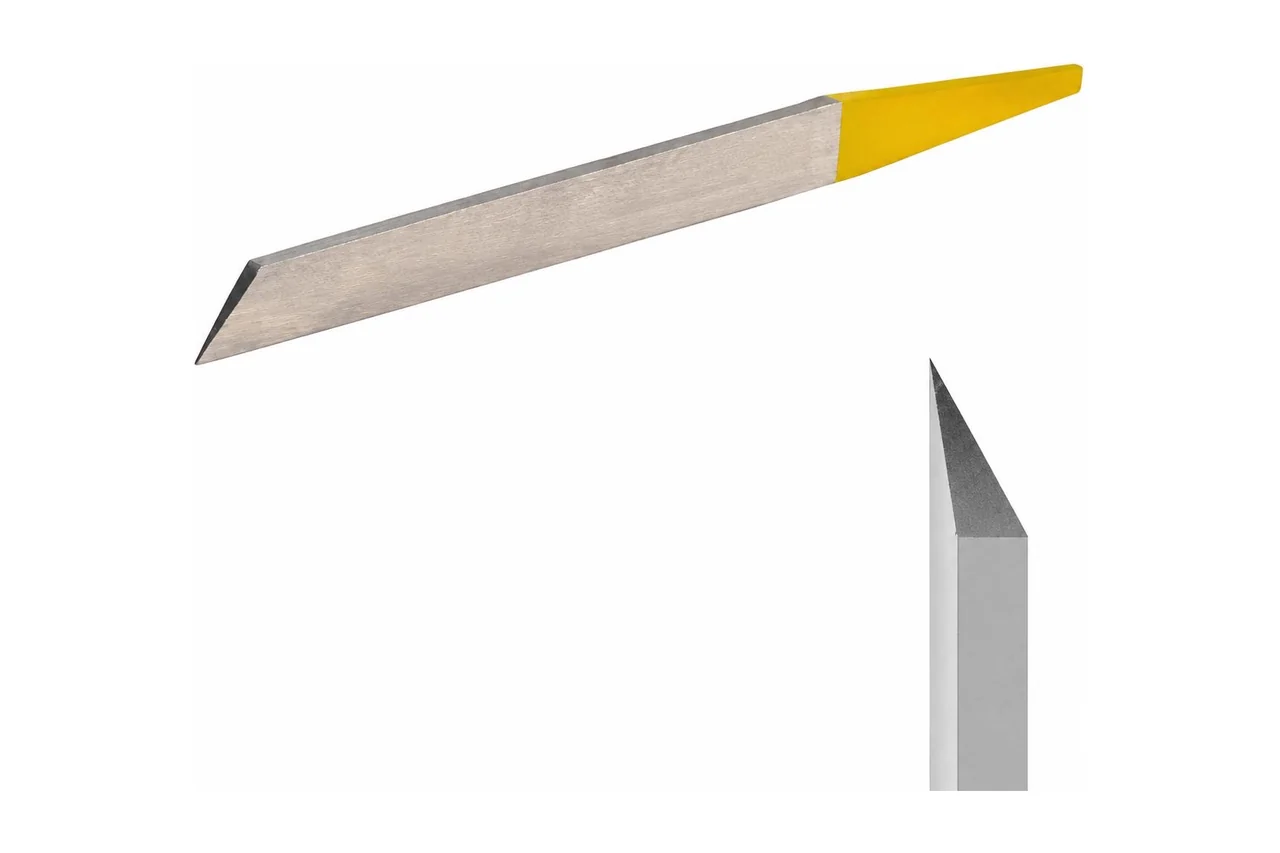

Knife

Tapered knife edge for deep, fine lines and thread cutting.

Europe #	USA #	Thickness (mm)
18	0	1.8
20	1	2.0
22	2	2.2
24	3	2.4
26	4	2.6
28	5	2.8
30	6	3.0
32	7	3.2

More from the range

Stainless steel perforated investment-casting flask with a cross bar across the opening and a top flange, drilled wall with rows of round vent holes.

Perforated flask

Solid wall flask

Rubber sprue base

Silicone gaskets

Micro machine gravers

View →

Porosity burr

View →

Order & enquire

Order hss gravers

Choose your specification and send it straight to our sales team. Need a custom size or OEM packing? Add it in the notes. We respond within one business day.
